- Place of Origin: Shenzhen
- Brand Name: xinghuo LED
- Model Number: XH-CDLR

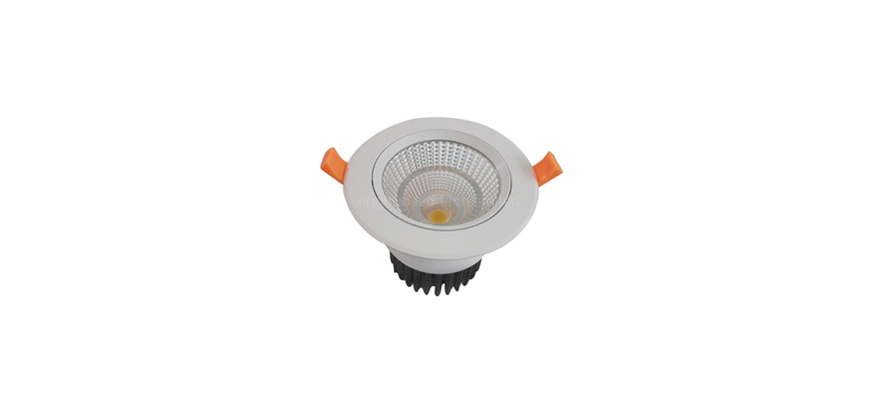

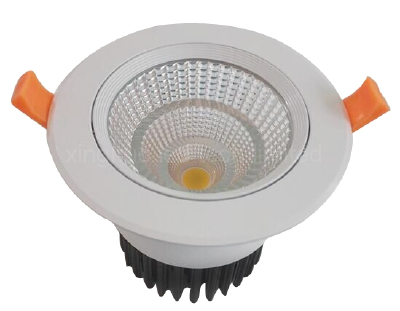

ZigBee Smart LED Downlights
Advantages:
CCT adjustable from 2700-6000K by App, Pad, PC, RF remote, control panel, sensor
Brightness 0-100% dimmable by App, Pad, PC, RF remote, control panel, sensor
Set time on/off and the color, brightness as you want
Control the lamps separately or group
One gateway can control 2000pcs lamps at the same time
Description:
Smart CCT adjustable LED track light take ZigBee system, it is the cheapest and safe system for samrt control,It is easier to change the color from warm white 2700K to cool white 6000K, brightness from 0-100% by mobile, Pad, PC, RF remote, control panel, sensor,you can set the time on/off and the status such as the brightness and the color,One gateway can control more than 2000pcs lamps at the same time (group control or separately control) Very easy to add the lamps by scan the QR code on the lamps or the driver, If you have internet, you can control the lamps all over the world,
Parameters:
| Warranty: | 3 years |
| Housing materials: | 6063 Brushed Aluminum Alloy |
| Size: | Φ128xH86mm Cut out:95mm |
| Housing color: | Black White |
| Light source: | Sharp SMD LEDs |
| Color: | Warm white, neutral white, cool white |
| Kelvin | 2700-5700K |
| CRI: | CRI90 @5700K, CRI97 @2700K |
| Luminous efficiency: | 80lm/W |
| Beam angle: | 23degree, 38degree |
| Adjustable: | Continuous 350° rotation and 90° pivot |
| Wattage: | 15-35W |
| Voltage: | AC100-240V |
| Dimmable: | ZigBee Smart system 0-100% dimmable |
| Driver: | PF>0.95 Flicker free |
| Package: | 1pc/box, 10pcs /carton |
Product model:
| Model | Size | Cut out | LED Brand | Wattage | Voltage | Bean Angle |
| XH-CDLR-10W-X5 | Φ99*H70mm | 90-100mm | Sharp | 10W | AC100-240V | 60° |
| XH-CDLR-15W-X5 | Φ99*H70mm | 125-135mm | Sharp | 15W | AC100-240V | 60° |
| XH-CDLR-20W-X5 | Φ128*86mm | 165-180mm | Sharp | 20W | AC100-240V | 60° |
| XH-CDLR-25W-X5 | Φ128*86mm | 200-220mm | Sharp | 25W | AC100-240V | 60° |
| XH-CDLR-30W-X5 | Φ128*86mm | 200-220mm | Sharp | 30W | AC100-240V | 60° |
| XH-CDLR-35W-X5 | Φ128*86mm | 200-220mm | Sharp | 30W | AC100-240V | 60° |
