- Place of Origin: Shenzhen
- Brand Name: xinghuo LED
- Model Number: XH-CDLR-15W-X1

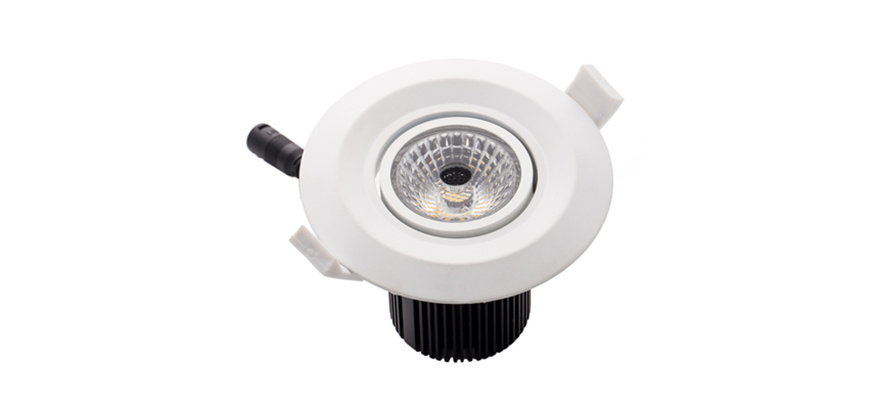

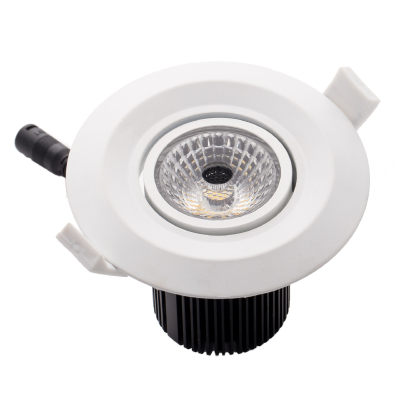

15W Orientable LED Downlight
Product model: XH-CDLR-15W-X1
Advantages:
♦ Original Citizen COB
♦ High quality 6063 brushed aluminum construction and heat dissipation
♦ High CRI: 97 (3000K/4000K)
♦ Good quality driver, flicker-free, PF>0.95
♦ High luminous efficiency: >100lm/W @CRI80
♦ Wattage: 10W, 15W, 20W
Description:
This is a series of adjustable LED downlights with a white or aluminum colored housing. The device is delivered with an external driver that can be dimmed with a TRIAC LED dimmer (Triac/1-10V/DALI).
The die-casting aluminum housing is equipped with an internal precise beam angle control reflector. The housing is sealed tight to prevent insects from entering with IP44 protection.Contains a Citizen COB LED chip with a CRI of 97, and is available in different color temperatures: 2700, 3000 and 4000K.
Parameters:
Housing materials | Die-casting aluminum alloy |
Diameter | ∮108*72mm |
Cut out | 90-100mm |
Light source: | Citizen COB LEDs |
Color | Warm white, neutral white, cool white |
Kelvin | 2700K/3000K/4000K/5000K |
CRI | 80 ,97 |
Luminous efficiency | 90-110lm/W @CRI82 (whole lamp) |
Beam angle | 15°/24°/60° |
Adjustable | 30° |
Wattage | 15W |
Voltage | AC200-240V/ AC90-130V |
Dimmable | DALI, TRIAC, O/1-10V, DMX, RF, ZigBee |
Driver | PF>0.95 Flicker free |
Housing color | White |
Warranty | 3-5 year |
Lumen Data:
| Model No. | CCT | CRI | LED Power | System Power | LED Output | System Output |
| XH-CDLR-10W-X1 | 3000K | CRI97 | 10W | 11.7W | 1220LM | 920LM |
| XH-CDLR-15W-X1 | 3000K | CRI97 | 15W | 17.5W | 1840LM | 1380LM |
| XH-CDLR-20W-X1 | 3000K | CRI97 | 20W | 23.5W | 2430LM | 1820LM |
| XH-CDLR-10W-X1 | 4000K | CRI97 | 10W | 11.7W | 1310LM | 980LM |
| XH-CDLR-15W-X1 | 4000K | CRI97 | 15W | 17.5W | 1930LM | 1450LM |
| XH-CDLR-20W-X1 | 4000K | CRI97 | 20W | 23.5W | 2530LM | 1900LM |
- Place of Origin: Shenzhen
- Brand Name: xinghuo LED
- Model Number: XH-CDLR-15W-X1
